How to Connect IP camera, POE and NVR?

mvteam mvteamcctv.com 2015-11-11 13:57:36



IP camera is one of the mainly CCTV products, take about 20% market share in CCTV industrial. It is existing for more than 8 years, and developed very fast and maturely at present. IP cameras & NVR are very popular with Europen and North American people. And more and more welcomed in Asia market now.



MVTEAM IP camera can support transmit power over enternet cable(POE), this technology is very convenient when install the IP cameras, don't need put power cable, only one cat 5 cable is OK for power & video transmition.



So how to connect IP camera, POE and NVR then?

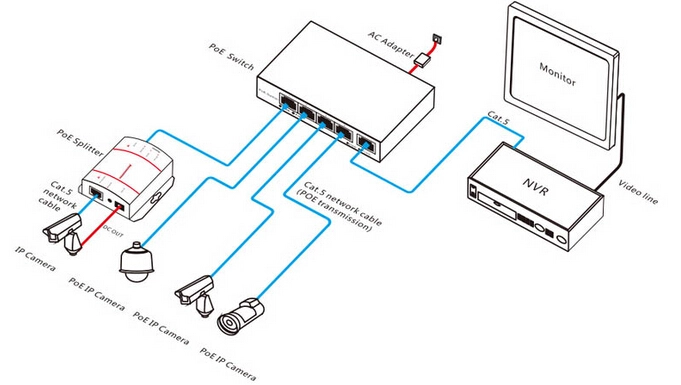

Below is the detailed connecting diagram for your reference.




Important Notice:



*If the IP camera didn't built in POE or can not built in POE as the small size, then can connect with a external POE to transmit the power.



*The POE transmit distance is within 100m.



For more information about MVTEAM IP camera video demo

Welcome to visit: http://www.mvteamcctv.com/video.html
