How to Enable BNC output for MVTEAM 5-in-1 Hybrid DVR?
Flora
www.mvteamcctv.com
2017-07-18 11:11:22
Currently, more clients use HDMI output, but some clients also need BNC output. For MVTEAM 5-in-1 DVR, users can directly use HDMI, VGA output. But when use BNC output, need do one setting as below:

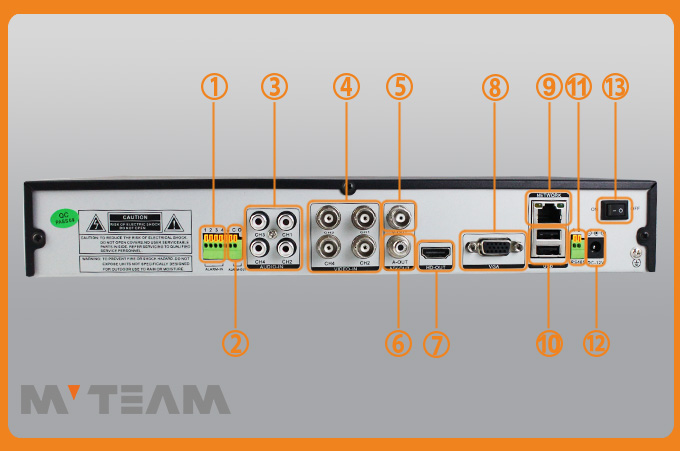

1. Here is 4CH DVR back picture, it supports alarm, BNC video in, HDMI output, VGA output, BNC video output, RCA Audio output/input, PTZ, etc.
①Alarm-in ②Alarm-out ③Audio-in(RCA*4) ④Video-in(BNC*4) ⑤BNC video-out(connect BNC monitor or TV set)
1. Here is 4CH DVR back picture, it supports alarm, BNC video in, HDMI output, VGA output, BNC video output, RCA Audio output/input, PTZ, etc.
①Alarm-in ②Alarm-out ③Audio-in(RCA*4) ④Video-in(BNC*4) ⑤BNC video-out(connect BNC monitor or TV set)
⑥Audio-out(RCA*1) ⑦HDMI video-out ⑧VGA video-out ⑨RJ45(Network cable interface) ⑩USB2.0 interfaces(connect mouse,USB disk for upgrade or backup) ⑪S485(PTZ Control interface) ⑫ Power in(DC 12V) ⑬Power switch(on/off)

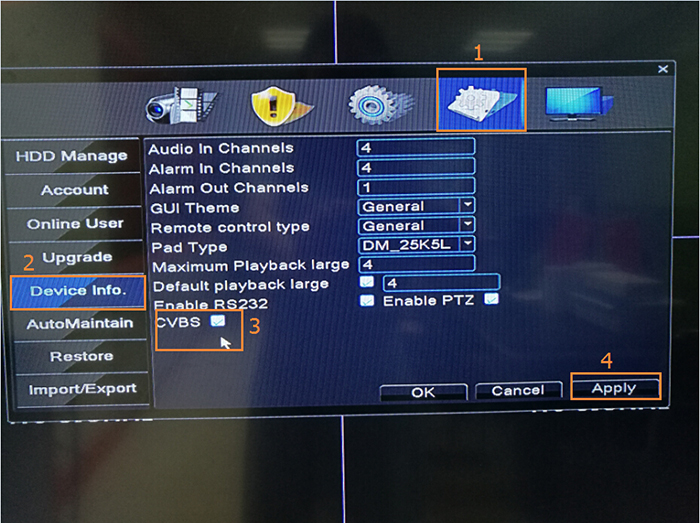

2. Choose main menu-system-Device Info., then you will see CVBS as below, please choose this CVBS, then click OK or Apply. Then you will use BNC output successfully.
3. Users can also see other settings here, like Audio in, Alarm in, Alarm out, max. Playback, Enable PTZ, etc. If you cannot use these function, when connect the cable correctly, please kindly check if you set these well.
2. Choose main menu-system-Device Info., then you will see CVBS as below, please choose this CVBS, then click OK or Apply. Then you will use BNC output successfully.
3. Users can also see other settings here, like Audio in, Alarm in, Alarm out, max. Playback, Enable PTZ, etc. If you cannot use these function, when connect the cable correctly, please kindly check if you set these well.
