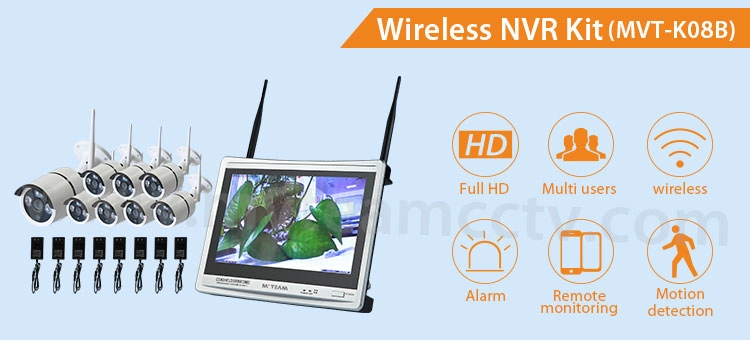

8CH 720P Wireless Best NVR Camera System With 12.5" LCD Screen(MVT-K08B)

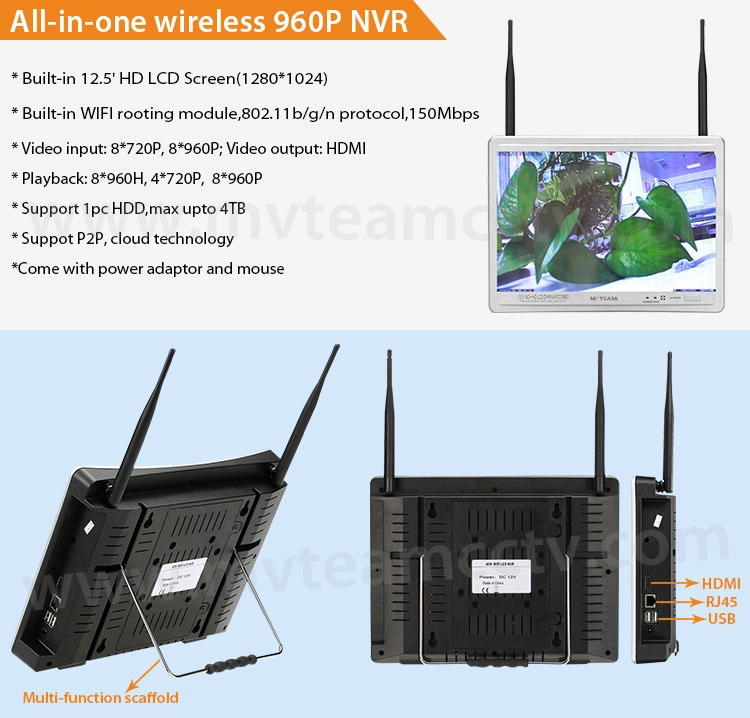

- 1pc 8CH Wireless NVR with built-in 12.5" inch HD LCD Screen
- Screen resolution:1280*1024
- NVR built-in WIFI rooting module

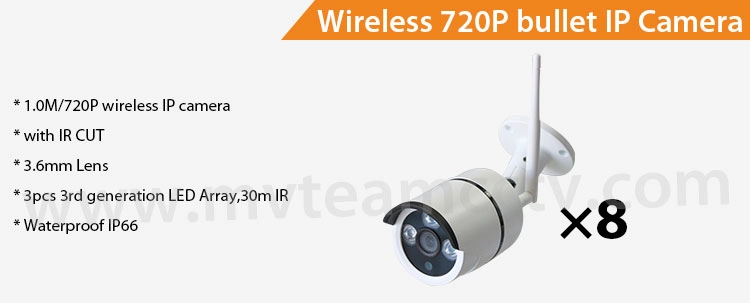

- 8pcs 1.0M/720P Outdoor wireless IP Cameras
- 3.6mm Lens,30m IR distance
- Plug and Play,no need connect cables
- with CE,ROHS,FCC Certificate
8CH 720P Wireless Best NVR Camera System With 12.5" LCD Screen(MVT-K08B)
Specfications:
Wireless NVR Specs
Operating System
Embedded Linux OS
AV(audio/video)input
Network Video
8CH
Network video input broadbank
20Mbps
AV (audio/video) output
HDMI input
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
AV CODEC Specification
Video Resolution
720P/960P
synch-playback
8CH
Video Control
Video/Capture mode
Maual,Time,Motion
Playback mode
Real time,Routine,Event
Backup
USB backup
Hard Disk
Type
1*SATA interface
Max Capacity
4TB at most for each
External Interface
Network Interface
1 adaptable RJ45 10M/100M,
2 WIFI interface
USB Interface
3 USB 2.0
Network Control
Protocol
UPnP (play&plug),SMTP (email survice),PPPoE (dial-up),
DHCP (Automatically obtain an IP address), etc…
Others
Power
DC12V3A
Power Consumption (W)
≤5W(Without HDD)
Operate Temperature (°C)
-10℃~+55℃
Working Humidity (%) RH
10%~90%
Size
257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD)
≤1Kg
FAQs:
Q1- Whether the wireless kit include hard disk?
A1: The kit come with all needed accessories except the hard disk,
We also can provide hard disk for customer,if you need,just let us know freely.
Q2- Whether the security system support network and mobile phone remote view?
A2: Yes, it can support network function.You can remote view the camera image from any where
in the world by computer(IE browser & client software) and smartphone like: iPhone, Android etc.
the mobile phone view APP is ESEENET+,more details can be found in our weblink
How to remote view wireless NVR kit on mobile phone?
Q3- What is the maximum distance between NVR and Camera

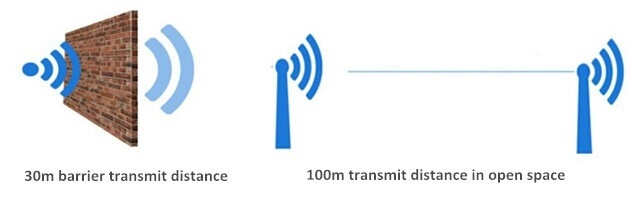

A3: The wireless system is a closed system, the signal is from NVR to Camera, about the
distance,theoretically,100m in open space and 30m barrier transmit distance.But the practical
distance will depends on your environment.
Q4- Whether the NVR with wireless and Wired Ports?
A4:The NVR is a wireless NVR and at NVR side panel there is a RJ45 interface, if your NVR don't
need connect network, you can use it connect to 1pc camera via Cat5 cable.
Q5- Can use a repeater to expand the distance?
A5: Can not
Q6- Do you have any certificates for the security equipment?
A6: Yes, all MVTEAM DVR kits are with CE, RoHS, FCC certificates for Europe and USA markets.
In addition, MVT-K04DH have been mass sell to Walmart in Brazil in 2012.
Shipping: Based on the your demands to choose the best shipping way.
Contact us:
If you have any question, welcome to Contact us.
Your close attention to our company is highly appreciated.
Welcome to visit our official website www.mvteamcctv.com
