China Waterproof IP66 Varifocal Lens AR(antireflection) Panel Infrared AHD camera(MVT-AH18)
- Model Number:MVT-AH18
- Type: bullet camera
- Camera Sensor: CMOS
- Resolution:2mp/1080p,1.3MP/1024P,1MP/720P
- Lens: 2.8-12mm varifocal lens
- IR LEDs: 42pcs×Φ5 IR leds
- IR Distance: 35m
- waterproof:IP66
- Certificate:CE,ROHS,FCC
- Warranty:2 years
China Waterproof IP66 Varifocal Lens AR(antireflection) Panel Infrared AHD camera(MVT-AH18)
1-1.0M / 1.3M / 2.0M pixel full optional real-time, high definition 1080P
2-3MP 2.8-12mm(M12) vari-focal Lens
3-Waterproof Rating: IP66
4-75- 3 general support under the coaxial cable transmission distance without loss of over 500M
5-High-speed, long-distance, real-time transmission
6-Support OSD
2-3MP 2.8-12mm(M12) vari-focal Lens
3-Waterproof Rating: IP66
4-75- 3 general support under the coaxial cable transmission distance without loss of over 500M
5-High-speed, long-distance, real-time transmission
6-Support OSD
| Model | MVT-AH18A | MVT-AH18T | MVT-AH18B | MVT-AH18R | MVT-AH18P | MVT-AH18F |
| Sensor | 1/4” CMOS (OV9732 +NVP2433) 1.0MP,with IR CUT |
1/3” CMOS (AR0130 +NVP2433 ) 1.3MP,with IR CUT |
1/3” CMOS (SONY225 +NVP2431H) 1.3MP,with IR CUT |
1/3” CMOS (0803+ NVP2470H ) 2.0MP,with IR CUT |
1/3” CMOS (SONY322 +NVP2441H) 2.0MP,with IR CUT |
1/3” CMOS (AR0330 +NVP2470H ) 3.0MP,with IR CUT |
| SIGNAL | PAL / NTCS | |||||
| Video Output | TVI/CVI/AHD | TVI/CVI/AHD | AHD | AHD | AHD | AHD |
| Lens | 2.8mm-12mm Vari-focal Lens(M12) | |||||
| IR Leds | 42pcs×Φ5 IR leds | |||||
| IR Distance | 35m IR Distance | |||||
| Min. Illumination | 0.01Lux F1.2 | |||||
| Shutter | 4/25s~1/45,000s | |||||
| Synchronization | Internal | |||||
| BLC | optional | |||||
| OSD | optional | |||||
| AWB | Automatic / manual / day / night | |||||
| Day/Night | with IR Cut, Auto(ICR) / Color / B/W | |||||
| Transmission hidden |
Over 500m via 75-3 coaxial cable | |||||
| Power Supply | DC 12V±10% | |||||
| Working | -30°C~+60°C/Less than 95%RH(no condensation) | |||||
| Environment | ||||||
| Waterproof | IP66 with certificate | |||||
| Warranty | 2 years | |||||
| Power Consumption |
4W MAX | |||||
Applications:
Finance, supermarkets, telecommunications, government, schools, airports, factories, hotels, museums and other places to apply the high-resolution requirements.
Finance, supermarkets, telecommunications, government, schools, airports, factories, hotels, museums and other places to apply the high-resolution requirements.
Q1:Can I view the camera on mobile phone and computer?
After connect the camera to DVR,you can view the camera thru DVRs' network view function.
Q2:Can I test sample before place mass order?
Sure,sample order is welcomed,MOQ is 1pc.
Q3:Can I buy the cameras with my own brand?
Yes,we accept OEM order.

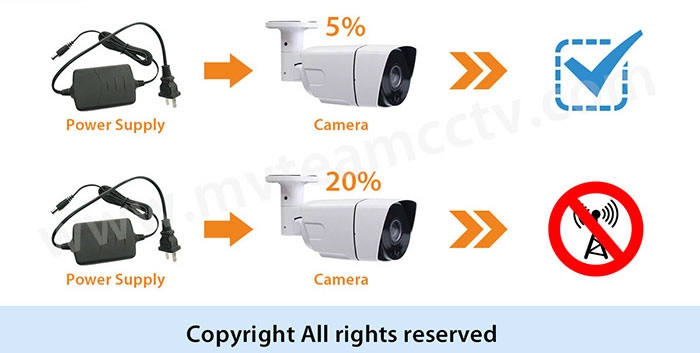

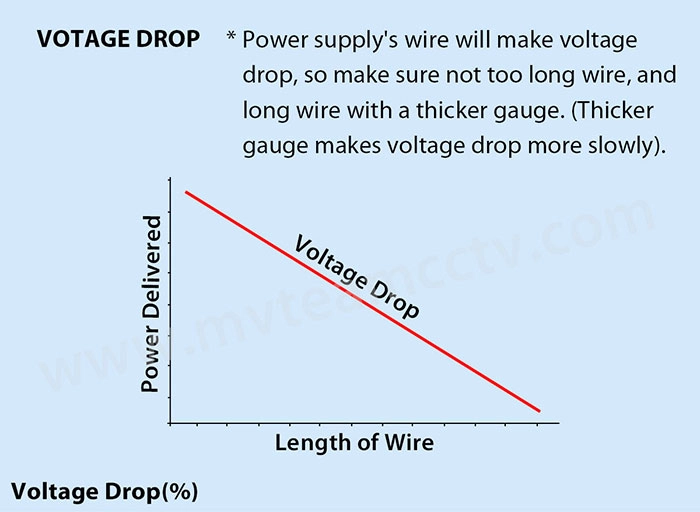

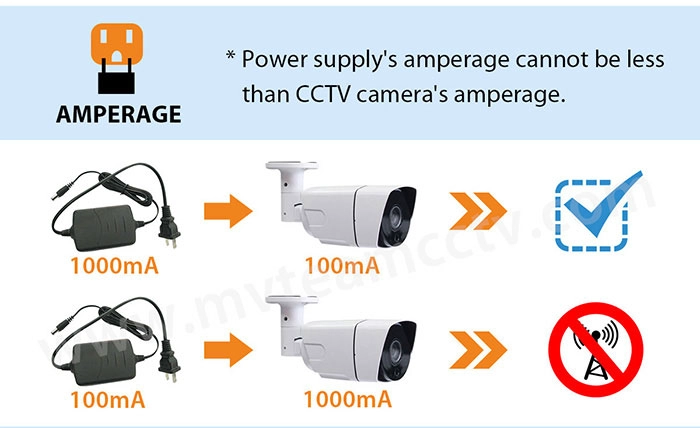

Q4:How to supply proper voltage and amperage for the cameras?
Our AHD cameras are 12V DC,please refer to below guide:
After connect the camera to DVR,you can view the camera thru DVRs' network view function.
Q2:Can I test sample before place mass order?
Sure,sample order is welcomed,MOQ is 1pc.
Q3:Can I buy the cameras with my own brand?
Yes,we accept OEM order.
Q4:How to supply proper voltage and amperage for the cameras?
Our AHD cameras are 12V DC,please refer to below guide:
Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.
Shipping: Based on the your demands to choose the best shipping way.
Contact us:
If you have any question, welcome to Contact us.
Your close attention to our company is highly appreciated.
Welcome to visit our official website www.mvteamcctv.com to view video demos,download product catalog and read CCTV technical articles
